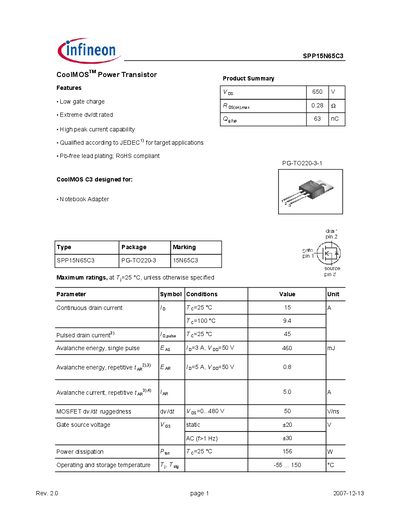

SPP15N65C3 CoolMOS power transistor features include low gate charge, extreme dv/dt rating, and high peak current capability. The product is qualified according to JEDEC1) for target applications, and meets lead-free lead plating and RoHS requirements. CoolMOS C3 is designed for notebook adapter.
The SPP15N65C3 is a CoolMOS™ power transistor designed for high‑current applications such as notebook adapters. It features low gate charge, high peak current capability, and JEDEC qualification, while complying with RoHS requirements.
The datasheet lists maximum ratings, thermal characteristics, static and dynamic electrical parameters, as well as detailed package outlines (PG‑TO220‑3). It also includes typical output and transfer characteristics, gate‑charge curves, and avalanche energy specifications for design reference.
| Continuous drain current (I_D) | 15 A @ 25 °C |
|---|---|
| Pulsed drain current (I_D(pulse)) | 45 A @ 25 °C |
| On‑state resistance (R_DS(on)) | Typical 0.25 Ω @ 25 °C |
| Gate threshold voltage (V_GS(th)) | Typical 3.9 V |
| Avalanche energy (single pulse) | 460 mJ @ V_pp=50 V |
| Input capacitance (C_iss) | 1600 pF (V_GS=0 V, V_PG=25 V) |
| Output capacitance (C_oss) | 540 pF @ 1 MHz |
| Total gate charge (Q_g) | 63 nC |
| Power dissipation (P_D) | 156 W @ 25 °C |
| Operating temperature range | -55 °C to 150 °C |
The continuous drain current is rated at 15 A at 25 °C.
The typical on‑state resistance is 0.25 Ω at 25 °C.
The input capacitance is 1600 pF (V_GS=0 V, V_PG=25 V).
It is supplied in a PG‑TO220‑3 package.
