This is the 2.4 edition of the PFET data sheet released by Texas Instruments on September 21, 2021, which details the characteristics and electrical parameters of the device

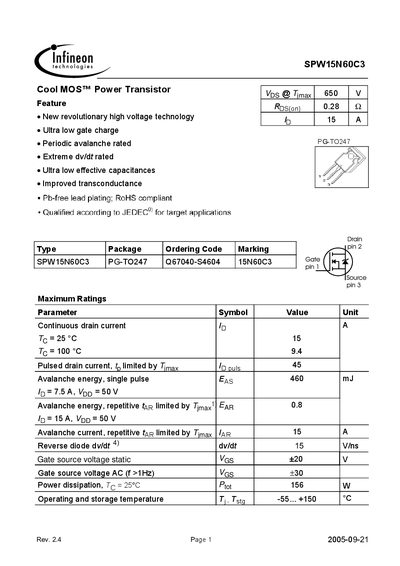

The SPW15N60C3 is a Cool MOS™ power transistor designed for high‑voltage applications up to 650 V and continuous drain currents of 15 A. It features ultra‑low gate charge, low on‑state resistance, and RoHS‑compliant, lead‑free packaging in a PG‑TO247 case.
The document lists maximum ratings, thermal characteristics, detailed electrical parameters, typical output and transfer curves, gate‑charge data, avalanche ratings, and mechanical dimensions. It also includes safety notices and contact information for Infineon Technologies.
| Power dissipation at 25 °C (P_D) | 156 W |
|---|
It can dissipate up to 156 W when the case temperature is 25 °C.
The transistor is supplied in a PG‑TO247 package.
