IPI50R350CP CoolMOSTM Power Transistor is a new power device with the lowest RON x Qg, ultra low gate charge, extreme dv/dt rating, high peak current capability, lead-free lead plating and RoHS compliance.
The IPISOR350CP CoolMOS power transistor is designed for hard and soft‑switching SMPS, CCM PFC, and PWM applications such as server power supplies, notebook adapters, PDPs and LCD TVs. It offers ultra‑low gate charge, high peak current capability and is RoHS compliant.

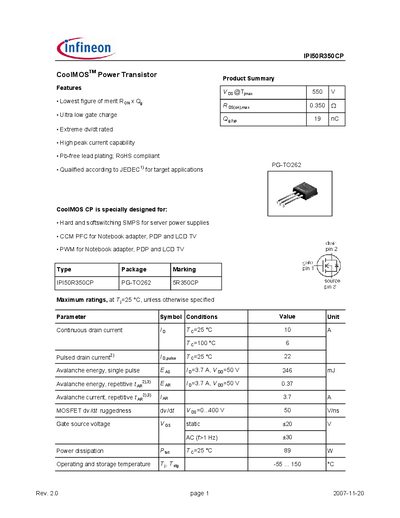

The datasheet lists maximum ratings, thermal characteristics, static and dynamic electrical parameters, gate‑charge data and typical output characteristics. Detailed tables give values for drain current, on‑state resistance, capacitances, avalanche energy and diode recovery, helping designers evaluate suitability for their circuits.
| Continuous drain current (Id) | 10 A |
|---|---|
| Pulsed drain current (Ipp) | 22 A |
| Total gate charge (Qg) | 19 – 25 nC |
The maximum continuous drain current is 10 A at 25 °C.
