SPN01N60C3 is a Cool MOS™ power transistor with revolutionary high voltage technology, ultra-low gate charge, extreme dv/dt rating, ultra-low effective capacitance, and improved transconductance. It has a maximum drain-source voltage of 650V, an on-resistance of 6Ω, and a continuous drain current of 0.3A.

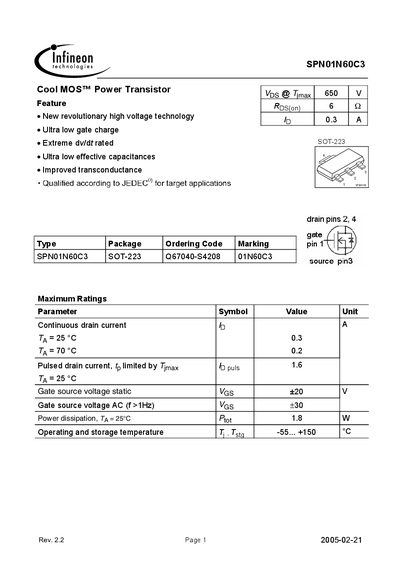

The SPNO1N60C3 is a Cool MOS™ power transistor featuring ultra‑low gate charge, low effective capacitances and high voltage capability in a SOT‑223 package. The document provides maximum ratings, thermal and electrical characteristics, and recommended PCB footprint.
Key sections cover maximum ratings, thermal resistance, on‑state resistance, gate charge curves, transient thermal impedance and mechanical dimensions for reflow soldering.
| Continuous drain current (Id) at 25 °C | 0.3 A |
|---|---|
| Power dissipation at 25 °C | 1.8 W |
| Operating temperature range | -55 °C to +150 °C |
It is rated for a continuous drain current of 0.3 A at 25 °C.
