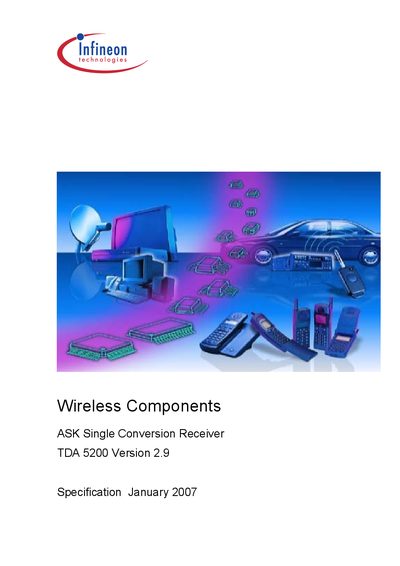

This PDF document provides specifications for the Wireless Components ASK Single Conversion Receiver TDA 5200 Version 2.9. It describes the features and characteristics of the product.
The TDA 5200 is a very low‑power consumption single‑chip ASK receiver covering the 868‑870 MHz and 433‑435 MHz bands. It integrates a low‑noise amplifier, double‑balanced mixer, fully integrated VCO and PLL synthesiser, crystal oscillator, limiter with RSSI generation, data filter, data slicer and peak detector, plus a power‑down feature to save battery life.
Typical applications include keyless entry systems, remote‑control devices, alarm systems and low‑bitrate communication links. The device is supplied in a PG‑TSSOP‑28 package and requires only a few external components.
| Supply current (868 MHz) | 4.8 mA typ. |
|---|---|
| Supply current (433 MHz) | 4.6 mA typ. |
| Supply voltage range | 5 V ±10 % |
| Power‑down current | 100 nA max (typ. 50 nA) |
| RF input sensitivity | < ‑107 dBm |
| Operating frequency bands | 868‑870 MHz and 433‑435 MHz |
| Limiter RSSI generation frequency | 10.7 MHz |
| Package type | PG‑TSSOP‑28 |
The typical supply current at 868 MHz is 4.8 mA.
The RF input sensitivity is better than –107 dBm.
It is supplied in a PG‑TSSOP‑28 package.
Keyless entry systems, remote‑control systems, alarm systems and low‑bitrate communication systems.
