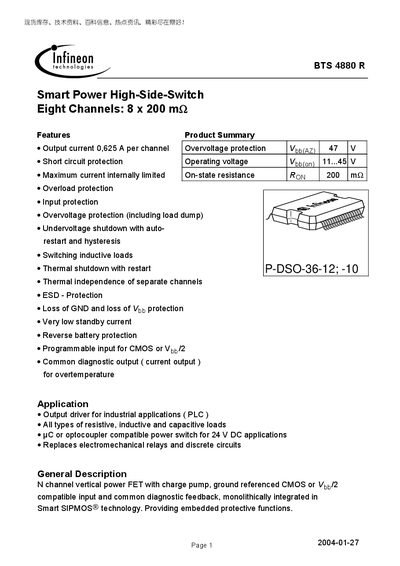

This document is a user manual for BTS 4880 R Smart Power High-Side-Switch Eight Channels
The BTS 4880R is a vertical N‑channel power FET with a charge‑pump architecture, offering eight independent channels each capable of 0.625 A continuous output current. Integrated protection includes over‑voltage, under‑voltage, short‑circuit, thermal shutdown, ESD, and reverse‑battery protection, making it suitable for industrial PLC applications and for replacing electromechanical relays.
The device operates from a supply voltage of 11 V to 45 V, supports CMOS or V\,\_/2 programmable inputs, and provides a common diagnostic output for over‑temperature monitoring. Detailed electrical characteristics, maximum ratings, and package dimensions are listed in the datasheet.
| Output current per channel | 0.625 A |
|---|---|
| On‑state resistance (Ron) typical | 200 mΩ |
| Undervoltage shutdown voltage | 7 V – 10.5 V |
| Standby current | 50 µA – 150 µA |
| Maximum junction temperature | 135 °C |
Each channel can continuously source up to 0.625 A.
The typical on‑state resistance (Ron) is 200 mΩ.
Yes, it includes reverse‑battery protection.
