The PROFET® BTS 736 L2 is a high-side switch produced by Siemens of Germany. It has short circuit protection, overload protection, overcurrent protection, overvoltage protection, and is suitable for 5V, 12V and 24V grounded loads. It can replace electromechanical relays, fuses and discrete circuits.
The Infineon PROFET BTS 736 L2 is a dual‑channel smart high‑side power switch with integrated protection functions such as short‑circuit, overload, current‑limit, thermal shutdown, over‑voltage, reverse‑battery and ESD protection. It is designed for uC‑compatible high‑side switching of 5 V, 12 V and 24 V grounded loads, including resistive, inductive and capacitive loads with high inrush currents.

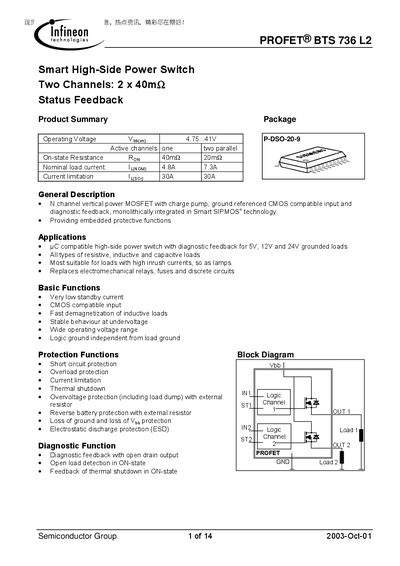

The document provides pin definitions, functional diagrams, maximum ratings, electrical characteristics, diagnostic features, truth tables and package information (P‑DSO‑20‑9). It is intended for designers who need detailed specifications and integration guidance for the BTS 736 L2 device.
| On‑state Resistance (Ron) | 40 mΩ |
|---|---|
| Package Type | P‑DSO‑20‑9 |
Each channel has an on‑state resistance of 40 mΩ.
