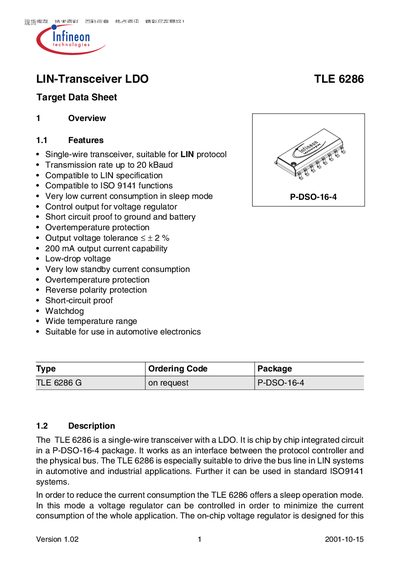

The TLE 6286 is a single-wire transceiver with a LDO function, especially suitable for LIN systems in automotive and industrial applications
The TLE 6286 is a single‑wire LIN transceiver combined with a low‑dropout regulator (LDO) in a 16‑pin P‑DSO‑16‑4 package. It provides a transmission rate up to 20 kBaud, 200 mA output current capability, and features such as over‑temperature, reverse‑polarity and short‑circuit protection. The device includes a watchdog timer and can operate in a low‑power sleep mode that controls an external voltage regulator.
The datasheet details pin configuration, functional block diagrams, operation modes, and timing specifications for reset and watchdog functions. It also describes recommended external components for LIN master nodes, such as termination resistors and capacitors, and provides package dimensions and ordering information.
| Transmission rate | up to 20 kBaud |
|---|---|
| Output current capability | 200 mA |
| Standby current | Very low |
| Over‑temperature protection | Enabled |
| Reverse polarity protection | Enabled |
| Watchdog timer | Enabled |
| Temperature range | Wide |
| Control output for voltage regulator | Provided |
The TLE 6286 supports a transmission rate of up to 20 kBaud.
It can deliver up to 200 mA of output current.
Yes, the transceiver has built‑in over‑temperature protection.
