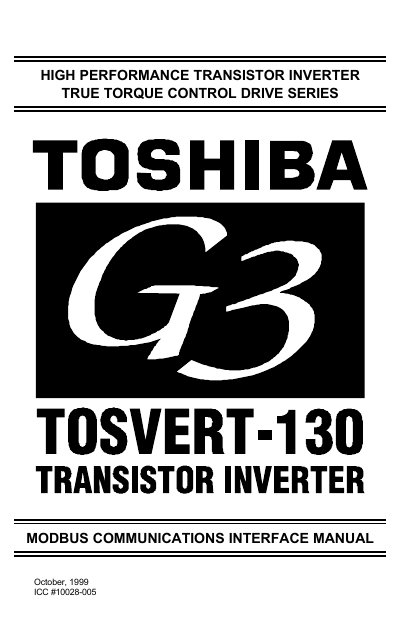

Installation, wiring, configuration and maintenance guide for the Modbus communications interface of the Toshiba TOSVERT-130 G3 inverter.
This manual provides detailed instructions for installing, wiring, grounding, and configuring the Modbus communications interface board for the Toshiba TOSVERT-130 G3 high‑performance transistor inverter. It includes safety precautions, step‑by‑step installation and removal procedures, and guidance on setting DIP switches and communication parameters.
The document also covers equipment specifications, maintenance and inspection routines, storage and warranty information, as well as a full list of Modbus programming registers and fault codes to assist qualified technicians in troubleshooting and servicing the inverter system.
| Operating ambient temperature | -10 °C to +40 °C |
|---|---|
| Storage ambient temperature | -25 °C to +65 °C |
| EEPROM write‑cycle life | 10,000 write cycles |
The inverter can operate in ambient temperatures from –10 °C to +40 °C.
The EEPROM is rated for up to 10,000 write cycles.
