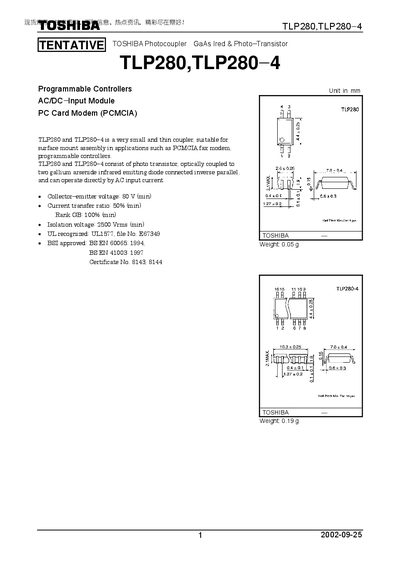

TLP280 and TLP280-4 are very small and thin couplers, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers.
The TLP280 and TLP280-4 are compact surface‑mount GaAs infrared photocouplers designed for applications such as PCMCIA fax modems and programmable controllers. They consist of a photo‑transistor optically coupled to an infrared emitting diode and can operate directly from AC input current.
The document provides pin configurations, maximum ratings, electrical characteristics, isolation and switching specifications, as well as safety and usage restrictions for these components.
| Collector‑emitter voltage (VCEO) | 80 V (min) |
|---|---|
| Isolation voltage | 2500 Vrms (min) |
| Current transfer ratio (CTR) | 50% (min) |
| Forward current (IF RMS) | +50 mA |
| Junction temperature (Tj) | 125 °C |
| Weight | 0.05 g |
The isolation voltage is rated at 2500 Vrms (minimum).
The collector‑emitter voltage rating is 80 V (minimum).
The minimum current transfer ratio is 50 %.
The forward RMS current is rated at +50 mA.
