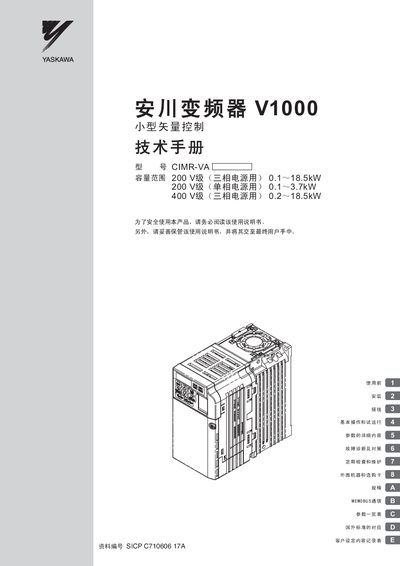

This is the technical manual of Anschue V1000 inverter, which introduces the usage and installation methods of inverter.
The Yaskawa V1000 inverter service manual provides detailed guidance on safe handling, installation, and wiring of the inverter. It includes safety precautions, model and name‑plate verification, and instructions for both cabinet‑mounted (IP20) and wall‑mounted (NEMA Type 1) configurations.
The manual also describes basic operation, test‑run procedures, parameter settings, fault diagnosis, and maintenance. Additional sections cover peripheral equipment, optional cards, and compliance with international standards such as UL and IEC. This manual is written in Chinese.
| Input voltage (single‑phase) | 200 V |
|---|---|
| Input voltage (three‑phase) | 400 V |
| Recommended main‑circuit wire size | 600 V, 75 °C rated, 2‑type PVC insulated |
Refer to section 1.2 which explains the method for checking the inverter’s model number and name‑plate details.
Use 600 V, 75 °C rated PVC insulated wire; the size should keep voltage drop within 2 % of the rated voltage.
Fault reset procedures are described in chapter 6.4, outlining steps to restart the inverter after a fault condition.
