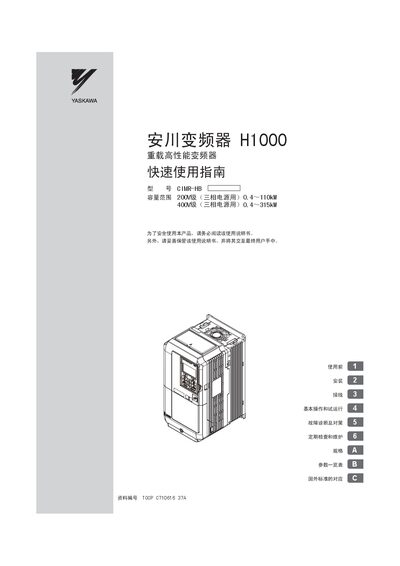

This guide covers installation, wiring, basic operation, trial run, fault diagnosis, maintenance, specifications and foreign‑standard references for the…
The Yaskawa H1000 Quick Start Guide provides step‑by‑step instructions for safely installing and wiring the inverter, performing basic operation and trial runs, and diagnosing faults. It also includes safety precautions, regular inspection procedures, and maintenance checks.
Key sections include installation and cabinet design, detailed wiring diagrams, parameter setting, self‑learning, safety input/monitoring, specifications tables, and guidance on complying with European CE and UL standards. This manual is written in Chinese.
| Power range (200 V, 3‑phase) | 0.4–110 kW |
|---|---|
| Power range (400 V, 3‑phase) | 0.4–315 kW |
| Maximum output frequency | 400 Hz |
Ensure all power sources are disconnected, verify that circuit breakers and contactors are OFF, and avoid wiring while the inverter is energized to prevent electric shock.
The upper limit can be configured up to 400 Hz using the frequency limit setting function.
