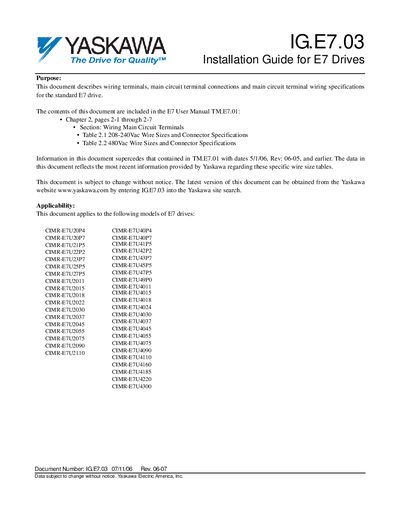

This document describes wiring terminals, main circuit terminal connections and main circuit terminal wiring specifications for the standard E7 drive. The contents of this document are included in the E7 User Manual TM.E7.01.
The Installation Guide provides wiring terminal information, main circuit wiring specifications, and control circuit wiring details for Yaskawa E7 drives. It supersedes earlier data and can be downloaded from the Yaskawa website using the document number IG.E7.03.
Key sections include tables of recommended wire sizes for 208‑240 V and 480 V systems, control circuit wiring precautions, and a field wiring diagram to assist with proper installation and safety procedures.
Refer to Table 2.1, which lists the appropriate wire sizes and connector specifications for 208‑240 V systems.
