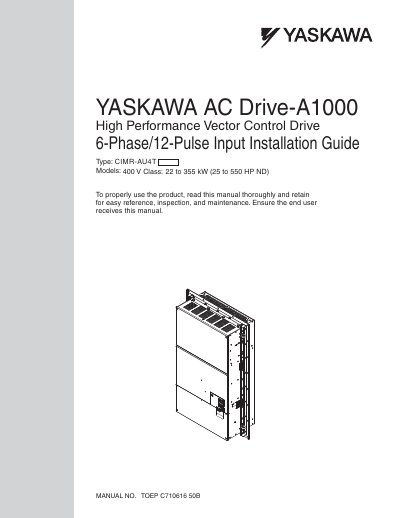

This manual provides detailed instructions on how to install the YASKAWA AC Drive-A1000 High Performance Vector Control Drive 6-Phase/12-Pulse Input, including wiring methods, wiring diagrams, and installation requirements.
This manual provides step‑by‑step instructions for installing the Yaskawa A1000 6‑Phase/12‑Pulse Input AC drive. It includes safety warnings, receiving inspection, mechanical mounting, wiring diagrams, and start‑up programming to ensure correct and safe operation.
The guide also contains detailed product specifications, parameter lists, and compliance information such as UL standards, temperature and altitude derating, and optional peripheral devices. It is intended for installers and service technicians who need to set up the drive in industrial environments.
| Power rating | 22 to 355 kW (25 to 550 HP) |
|---|---|
| Ambient temperature range | -10 °C to +40 °C |
| Altitude derating | Up to 1000 m without derating, up to 3000 m with derating |
The drive should be installed vertically and clear of any components that could block the heatsink air outlet; a temporary cover must be removed before start‑up.
The drive can be installed in environments with ambient temperatures from –10 °C to +40 °C.
