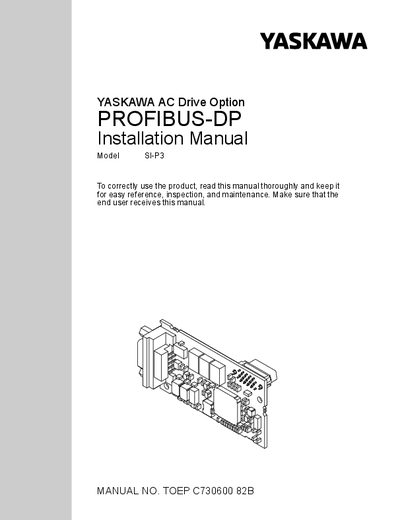

Installation manual for YASKAWA SI-P3 PROFIBUS-DP option, covering wiring, configuration, safety, specifications, and troubleshooting.
The SI-P3 PROFIBUS-DP option adds digital communication capability to YASKAWA AC drives, enabling fast, time‑critical data exchange with a PROFIBUS‑DP master. The manual provides safety instructions, compatible drive models, and detailed wiring and configuration steps.
Key sections include safety messages, an overview of the option, compatible drive list, step‑by‑step installation procedures, communication‑cable specifications, connection diagrams, troubleshooting guidance, and full technical specifications. Disposal and regulatory information are also provided.
| PROFIBUS DP version | V0, V1 |
|---|---|
| PPO TYPE | 1‑5 (No.3.072, Profile for Variable Speed Drives) |
| Extended data1 I/O | Inputs 16 bytes, Outputs 16 bytes |
| Extended data2 I/O | Inputs 4 bytes, Outputs 4 bytes |
| Basic data I/O | Inputs 6 bytes, Outputs 6 bytes |
| Connector | 9‑pin D‑subconnector (#4/40 UNC thread) |
| Communication Speed | 9.6 kbps – 12 Mbps |
| Ambient Temperature | -10 °C to +50 °C |
| Humidity | Up to 95 % RH (non‑condensing) |
| Storage Temperature | -20 °C to +60 °C |
The SI‑P3 option can be used with GA500, GA700, GA800, FP605, A1000, U1000, and Z1000U drive models.
This manual explains 4 error codes. Open a code for its meaning, causes and what to do:
