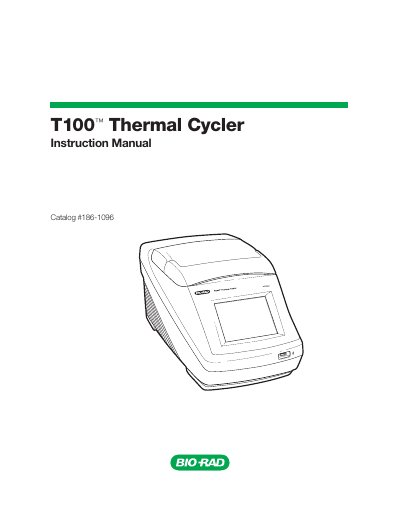

T100 Thermal Cycler Manual
This manual describes how to safely set up and operate the Bio‑Rad T100 Thermal Cycler, a laboratory instrument for PCR and real‑time PCR experiments. It includes resources such as Bio‑Rad technical notes, contact information for local representatives, and warranty details.
The document also outlines safety warnings, regulatory compliance, and technical specifications. It lists applicable safety standards (IEC, EN, UL, FCC) and provides detailed guidance on handling electrical shock risks, hot surfaces, burn hazards, and potential sample block explosions.
| Rated input power | 100‑240 Vac, 50‑60 Hz, 700 W Max |
|---|---|
| Replacement fuses | 10 A, 250 V, 5 × 20 mm, fast blow (qty 2) |
| Environment | Indoor use only |
| Operating temperature | 15‑31 °C |
| Relative humidity | Up to 80 % (non‑condensing) |
| Maximum altitude | 2 000 m above sea level |
| Pollution degree | 2 |
The T100 requires a rated input power of 100‑240 V AC, 50‑60 Hz, with a maximum consumption of 700 W.
For technical support in the United States and Canada, call Bio‑Rad at 1‑800‑424‑6723 (toll‑free).
The instrument complies with IEC 61010‑1, IEC 61010‑2‑010, EN 61010‑1, EN 61010‑2‑010, UL 61010‑1, UL 61010A‑2‑010, FCC Part 15 Class A, and related EMC standards.
