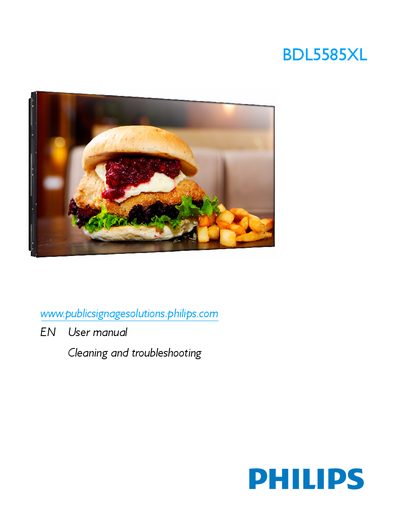

This manual introduces the cleaning and troubleshooting of BDL5585XL display
This manual covers safety and troubleshooting information, including warnings about heat, moisture, ventilation, and the risk of LCD burn‑in. It explains proper handling, cleaning, and storage, and provides service guidance for qualified personnel.
Technical specifications are listed, such as power requirements, dimensions, weight, audio and video outputs, and environmental operating limits. Regulatory compliance, plug‑replacement instructions for the UK market, and end‑of‑life recycling information are also included.
| Power Supply | AC 100V ~ 240V, 50‑60 Hz |
|---|---|
| Power Consumption (Max) | 250 W |
| Display Dimensions (without stand) | 1215.3 mm × 686.1 mm × 126.3 mm |
| Gross Weight | 39 kg |
| Net Weight | 34 kg |
| Operational Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Operational Humidity | 10 ~ 90 % RH (no condensation) |
| Audio Output (RMS) | 12 W (L) + 12 W (R) |
| Audio Output SPL | 82 dB/W/M (160 Hz ~ 13 kHz) |
| Maximum Video Resolution | 1920 × 1080 @ 60 Hz (WUXGA) |
The display is designed to operate between 0 °C and 40 °C (32 °F to 104 °F).
The display measures 1215.3 mm wide, 686.1 mm high, and 126.3 mm deep without the stand.
