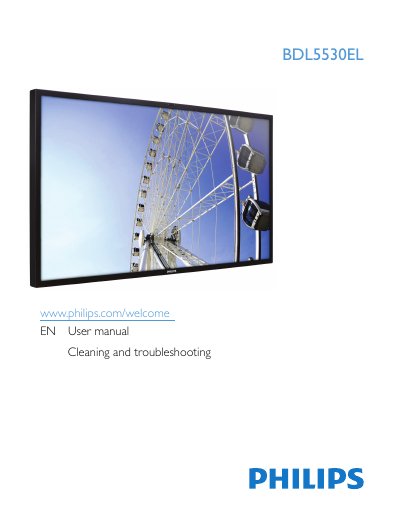

This document is the user manual for BDL5530EL display, which introduces the safety precautions and maintenance for the display.
This manual explains how to safely set up and use the Philips BDL5530EL LCD monitor. It covers safety precautions, recommended temperature and humidity ranges, and proper handling to avoid damage or burn‑in.
The guide details the monitor’s connections, OSD menu navigation, pixel‑defect policy, cleaning procedures, and technical specifications such as screen size, resolution, brightness, and audio output. Troubleshooting steps are provided for common issues like no picture, audio problems, and image distortion.
| Screen size (Active Area) | 54.6" (138.68 cm) |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 400 cd/m² |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle | 178° |
| Speaker output | 12W (L) + 12W (R) RMS |
| Power consumption (max) | 175 W |
Make sure the power cord is plugged in, the power switch on the back is turned on, and a video input is properly connected; also verify the display is not in standby mode.
Connect the green‑yellow wire to the earth terminal, the blue wire to the neutral (N) terminal, and the brown wire to the live (L) terminal of the plug.
