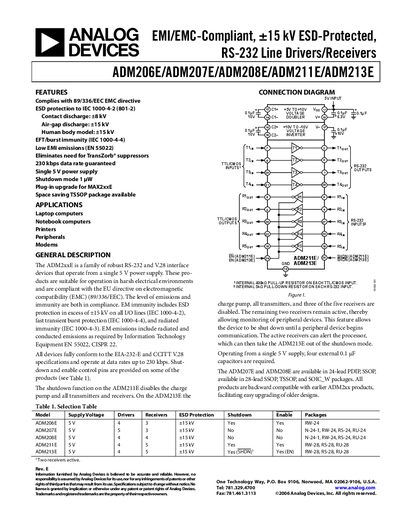

This document introduces the ADM206E/ADM207E/ADM208E/ADM211E/ADM213E series products, which are EMI/EMC-compliant RS-232 line drivers/receivers with ±15 kV ESD protection. The features include compliance with the 89/336/EEC EMC directive, ESD protection to the IEC 1000-4-2 (801-2) standard, EFT/burst immunity to the IEC 1000-4-4 standard, low EMI emissions, etc.
The ADM2xxE family provides robust RS‑232 and V.28 interface drivers and receivers that operate from a single 5 V supply. They meet EMC directives, offer up to +15 kV ESD protection, and support data rates up to 230 kbps. Features include shutdown mode with 1 pW consumption and optional enable pins.
The document includes electrical specifications, absolute maximum ratings, pin configurations, typical performance graphs, and an ordering guide with package options such as RW‑24, RS‑24, RU‑24, RW‑28, RS‑28, and RU‑28.
| Shutdown Supply Current | 0.2 pA – 10 pA |
|---|---|
| Maximum Data Rate | 230 kbps |
| ESD Protection (Human Body Model) | +15 kV |
The devices support data rates up to 230 kbps.
Shutdown supply current is specified as 0.2 pA to 10 pA.
The I/O pins are protected to +15 kV for the human body model.
The operating temperature range is –40 °C to +85 °C.
