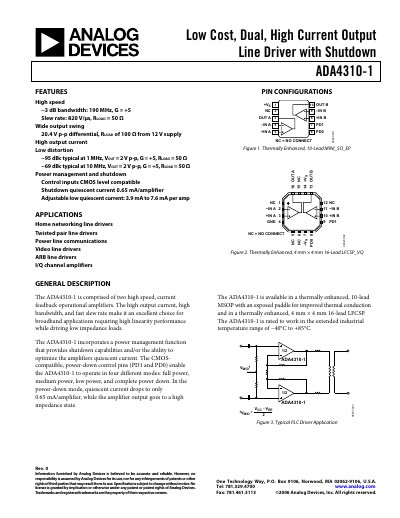

The ADA4310-1 is a low cost, dual high current output line driver with shutdown. It features high bandwidth, high output current, low distortion, and is suitable for applications such as home networking line drivers, twisted pair line drivers, power line communications, video line drivers, ARB line drivers, and I/Q channel amplifiers.
The ADA4310-1 is a dual, high‑current line driver from Analog Devices. It integrates two high‑speed current‑feedback operational amplifiers and offers shutdown capability via CMOS‑compatible control pins.
Key features include a 190 MHz −3 dB bandwidth, 820 V/µs slew rate, low distortion (−95 dBc at 1 MHz), and operation over an industrial temperature range of −40 °C to +85 °C. The device is available in 10‑lead MSOP and 16‑lead LFCSP packages.
| Bandwidth (‑3 dB) | 190 MHz |
|---|---|
| Input Offset Voltage | 1 mV |
| Operating Temperature Range | ‑40 °C to +85 °C |
In complete power‑down mode the quiescent current is 0.65 mA per amplifier.
The device provides a typical ‑3 dB bandwidth of 190 MHz.
