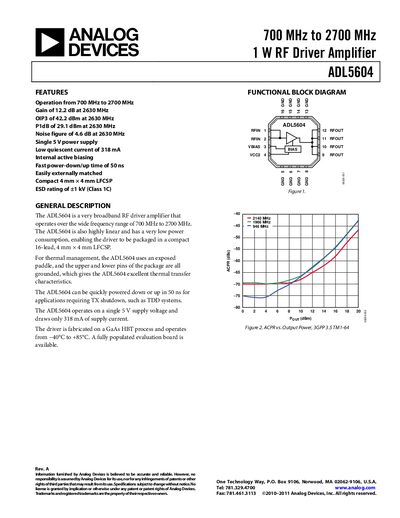

The document describes the ADL5604 RF driver amplifier, which operates in the frequency range of 700 MHz to 2700 MHz. It features a gain of 12.2 dB, OIP3 of 42.2 dBm, P1dB of 29.1 dBm, and a noise figure of 4.6 dB.
The ADL5604 is a broadband RF driver amplifier that operates from 700 MHz to 2700 MHz, delivering up to 1 W output with a gain of about 12 dB at 2630 MHz. It runs on a single 5 V supply, draws 318 mA, and features fast 50 ns power‑down/up times. The device is packaged in a compact 16‑lead 4 mm × 4 mm LFCSP with an exposed thermal paddle for efficient heat removal.
The datasheet includes detailed specifications, typical scattering parameters, absolute maximum ratings, pin descriptions, and recommended PCB layout guidelines. It also provides an evaluation board layout, thermal considerations, and an ordering guide for the ADL5604 and its evaluation board.
| Frequency Range | 700 MHz – 2700 MHz |
|---|---|
| Typical Gain at 2630 MHz | 12.2 dB |
| Output 1 dB Compression Point at 2630 MHz | 29.1 dBm |
| Noise Figure at 2630 MHz | 4.6 dB |
| Supply Voltage | 4.75 V – 5.25 V |
The ADL5604 operates from 700 MHz to 2700 MHz.
It requires a 5 V supply, typically between 4.75 V and 5.25 V.
