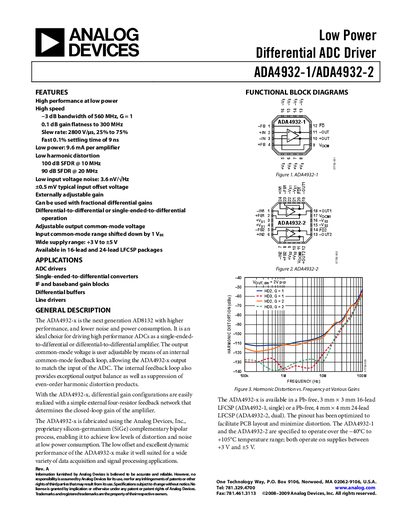

The document describes the features and characteristics of the low power differential ADC driver ADA4932-1/ADA4932-2. The product features high performance, low power consumption, high speed, low harmonic distortion, etc. It can be used in applications such as ADC drivers, single-ended-to-differential converters, IF and baseband gain blocks, etc.
The ADA4932‑x family provides high‑performance, low‑power differential ADC driving with adjustable gain and output common‑mode voltage. It is offered in 16‑lead (ADA4932‑1) and 24‑lead (ADA4932‑2) LFCSP packages and operates from +3 V to ±5 V.
The document includes functional block diagrams, detailed specifications, pin descriptions, typical performance curves, layout recommendations, and ordering information for designers integrating the device into high‑speed data‑acquisition systems.
| Slew rate | 2800 V/µs |
|---|---|
| Quiescent current per amplifier | 9.6 mA |
| Supply voltage range | +3 V to ±5 V |
The devices are rated for a maximum supply voltage of 11 V.
