AD8476 is a low power, unity gain, fully differential amplifier and ADC driver. The device features a supply current of 330μA, can drive high precision ADCs, and can be used with switched capacitor and Σ-Δ ADCs. AD8476 has a 5MHz bandwidth, 10V/μs slew rate, 39nV/√Hz output noise, and 200μV maximum output offset.
The AD8476 is a low‑power, fully differential precision amplifier with integrated gain resistors for unity gain. It is designed to drive high‑performance ADCs, offering rail‑to‑rail outputs, over‑voltage protection up to +23 V, and a supply current as low as 330 pA.

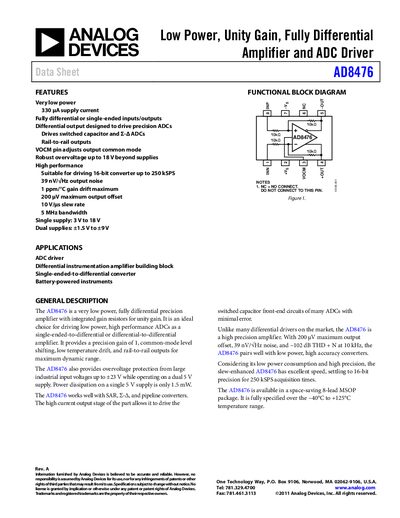

The document provides detailed specifications, absolute maximum ratings, pin descriptions, typical performance graphs, and ordering information for the 8‑lead MSOP package. It also includes application notes such as ADC driver and single‑ended‑to‑differential conversion.
| Operating Supply Voltage Range | 3 V to 18 V |
|---|---|
| Slew Rate | 10 V/ps |
| Gain Error (typical) | 0.02 % |
| Gain Drift | 1 ppm/°C |
| Package | 8‑Lead MSOP (RM‑8) |
It is offered in an 8‑lead MSOP (RM‑8) package with several suffixes (e.g., AD8476BRMZ, AD8476ARMZ).
