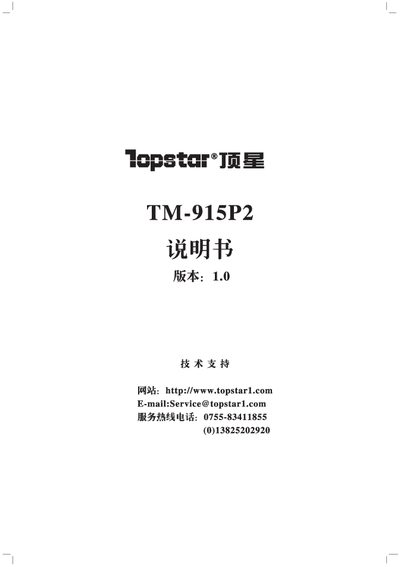

This manual describes the features of the Topstar TM-915P2 motherboard, including its Intel 915P/ICH6 chipset, LGA 775 socket, DDR2 memory support, multiple I/O interfaces, and onboard networking and audio.
It covers hardware installation (CPU, memory, expansion cards), jumper settings, BIOS setup and upgrade, driver installation for chipset, LAN, audio and USB, as well as appendices with troubleshooting, error codes, and contact information for service centers. This manual is written in Chinese.
| Chipset | Intel 915P northbridge + ICH6 southbridge |
|---|---|
| CPU Socket | LGA 775 |
| Front‑Side Bus | 533 / 800 MHz |
| Memory Type | DDR2 400/533 |
| Maximum Memory Capacity | 46 GB |
| Serial ATA Ports | 4 ports, up to 150 MB/s each |
| USB Ports | 8 USB 2.0 ports |
| PCI Express Slots | 1 × PCI‑Express x1, 1 × PCI‑Express x16 |
| Onboard Ethernet | 10/100 M Ethernet with Wake‑on‑LAN |
It uses an LGA 775 socket compatible with Intel Prescott‑core CPUs.
The board supports DDR2 memory at 400 MHz or 533 MHz, up to a total of 46 GB.
There are eight USB 2.0 ports on the motherboard.
It uses the Intel 915P northbridge together with the ICH6 southbridge.
