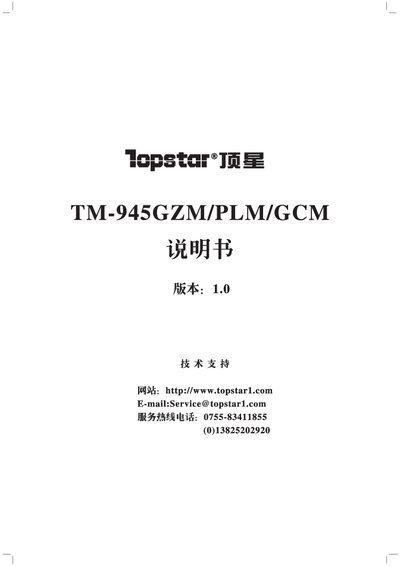

The document is a hardware connection manual for a product, which provides detailed information about the functions and connection methods of each interface of the product.
This manual introduces the Topstar TM-945GZM/PLM/GCM motherboard, which uses the Intel 945GZ/PLVGC+NH828016B (ICH7) chipset, supports Intel LGA 775 CPUs, DDR2 memory up to 26GB, multiple SATA and USB ports, and optional PCI Express slots. It details the board's features, supported components, and technical specifications.
The document covers hardware installation procedures, driver installations for chipset, graphics, LAN and audio, BIOS settings and upgrade instructions, as well as safety precautions and warranty information. Appendices provide troubleshooting codes and contact details for service centers. This manual is written in Chinese.
| Chipset | Intel 945GZ/PLVGC + NH828016B (ICH7) |
|---|---|
| CPU Socket | Intel LGA 775 |
| Front Side Bus | 533 MHz / 800 MHz |
| Memory Type | DDR2 400/533 |
| Maximum Memory Capacity | 26 GB |
| SATA Ports | 4 × S‑ATAII |
| USB Ports | Up to 8 × USB 2.0 (480 MB/s) |
| Integrated Graphics | Intel Graphics Media Accelerator 950 |
| Audio Output | Six‑channel sound |
| On‑board Network | 100 M or 1000 M Ethernet |
The motherboard supports up to eight USB 2.0 ports.
The manual includes a BIOS upgrade section (Chapter 4.2) that describes the procedure for updating the BIOS.
