This document is the PCB schematics of TM-845G mainboard

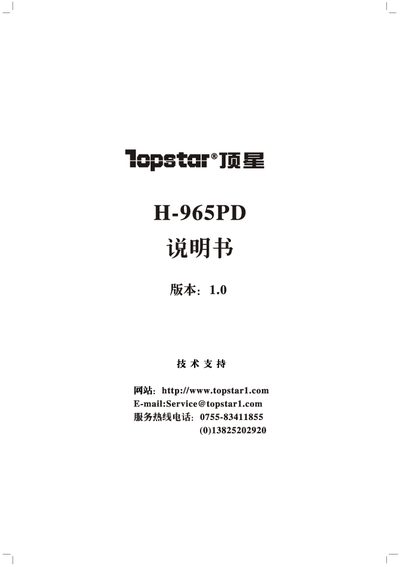

This manual covers the Topstar H-965PD motherboard, describing its features, specifications, and hardware layout.
It includes safety guidelines, step‑by‑step installation of memory and CPU, BIOS configuration, driver installation, and contact information for service centers. This manual is written in Chinese.
| Chipset | Intel P965 + ICH8 |
|---|---|
| CPU Socket | Intel LGA 775 |
| Memory Type | DDR2 533/667/800 |
| Maximum Memory | 8 GB |
| Serial ATA Ports | 4 × Serial ATA2 (max 300 MB/s) |
| USB Ports | 8 × USB 2.0 (max 480 Mb/s) |
| Onboard Ethernet | 100/1000 Mbit/s |
It uses the Intel LGA 775 socket.
The board provides eight USB 2.0 ports.
The motherboard supports up to 8 GB of DDR2 memory.
