The document is a user manual for TM-845G REV1 .0. It provides information about the hardware connections and features of the product.

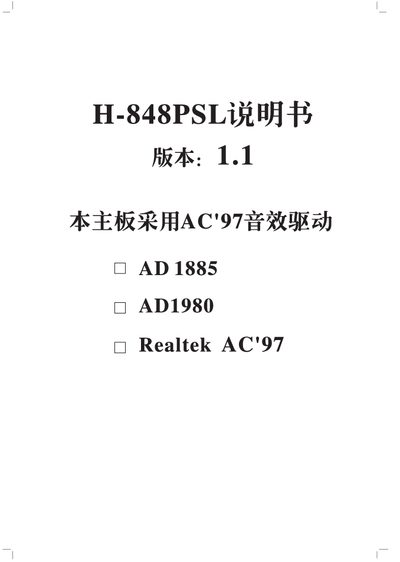

This manual introduces the Topstar H-848PSL motherboard, detailing its features such as Intel 82848P+FW82801EB chipset, AC'97 six‑channel audio, dual Serial ATA ports, and ATX form factor. It also lists the supplied accessories and safety guidelines for handling the board.
The document guides users through hardware installation, jumper settings, driver installation for LAN, SmartCard, USB 2.0, and BIOS setup. It explains how to load default or optimized BIOS values, set passwords, and perform BIOS upgrades using the Award BIOS Flash utility. This manual is written in Chinese.
| Chipset | Intel 82848P + FW82801EB |
|---|---|
| Supported CPUs | Intel Northwood P4 and Prescott CPUs |
| Maximum FSB | 800 MHz |
| Memory Slots | 2 DDR SDRAM slots, up to 2.0 GB total |
| Form Factor | ATX, 305 mm × 245 mm |
| Audio Codec | Integrated AC'97 six‑channel sound |
| USB Ports | 2 ports (expandable to 8) |
| Serial ATA Ports | 2 ports |
| PCI Slots | 6 PCI Bus Master slots |
The motherboard supports a front‑side bus up to 800 MHz.
It has two USB ports, which can be expanded to a total of eight.
An AC'97 six‑channel audio codec is integrated.
In the BIOS menu press Y then Enter to load the default values; press N then Enter to skip loading defaults.
