This document describes the hardware configuration and interface information of a product called TM-845G REV1.0. It features multiple USB interfaces, audio interfaces, PS/2 interfaces, and IDE interfaces. It supports 5.1 channel audio output. The product also includes BIOS and CMOS configuration information.

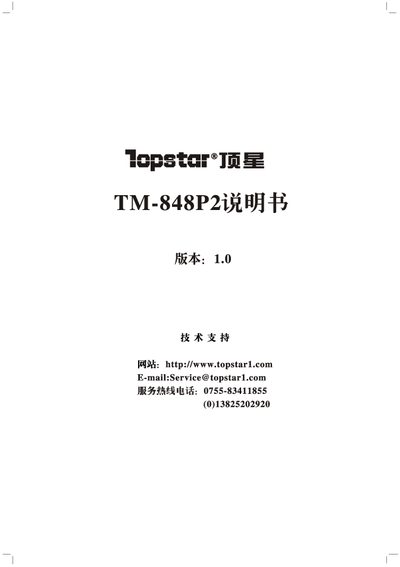

This manual covers the TM-848P2 motherboard’s features, technical specifications, safety precautions, and accessory list. It includes detailed sections on hardware installation, driver setup, BIOS configuration, and upgrade procedures.
The document also provides contact information for Topstar service centers across China, along with troubleshooting tips and common PC startup beep descriptions. This manual is written in Chinese.
| Chipset | Intel 848P+ EW82801DB (ICH4) |
|---|---|
| CPU Socket | Socket 478 |
| Supported Memory Types | DDR266/333/400 |
| Maximum Memory Capacity | 2 GB |
| USB Ports | 6 |
Do not expose the product to moisture or strong mechanical shock, ensure static protection, verify the local power voltage is 220 V, and disconnect the power before installing any cards or modules.
The motherboard provides six USB ports.
It supports up to 2 GB of DDR memory.
It uses a Socket 478 CPU socket.
