The document is about a computer motherboard and it describes the connection ports and functions. The motherboard supports printer port, audio port, power port, etc.

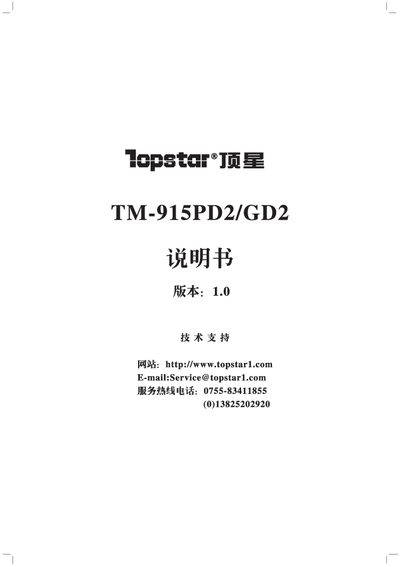

This manual introduces the Topstar TM-915PD2/GD2 motherboard, detailing its Intel 915 chipset, supported CPUs, memory types, and expansion interfaces. It also covers safety guidelines and product specifications.
The document guides users through hardware installation, BIOS configuration, driver setup, and BIOS upgrade procedures, and includes an appendix with tools, error codes, and service contacts. This manual is written in Chinese.
| Chipset | Intel 915P/G (Northbridge) + ICH6 (Southbridge) |
|---|---|
| CPU Socket | LGA 775, supports Intel Prescott Pentium 4 and Celeron D |
| Serial ATA Ports | 4 SATA ports (max 150 MB/s each) |
| USB Ports | 8 USB 2.0 ports |
