This document is a manual for the TM-845G REV1.0 product. The product features multiple interfaces, including CD-IN, PS/2, USB, etc. It also supports various power voltages, including +3.3V, -12V, +5V, etc. In addition, it provides information about the BIOS functions and settings.

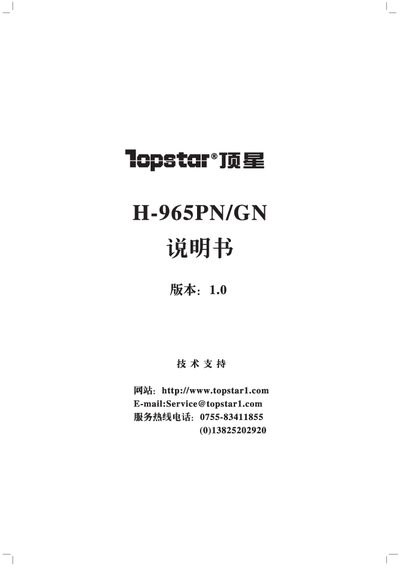

This manual introduces the Topstar H-965PN/GN motherboard, detailing its chipset, CPU and memory support, expansion slots, and integrated peripherals. It also lists safety guidelines and warranty notices.
The document walks users through hardware installation, driver installation for chipset, LAN, audio and USB, BIOS settings and upgrade procedures, and includes an appendix with troubleshooting tips, contact information for service centers, and a list of supplied accessories. This manual is written in Chinese.
| Chipset | Intel P965/G965 + ICH8 |
|---|---|
| CPU Socket | LGA 775, supports Prescott, Cedar Mill, Conroe cores |
| SATA Ports | 4 × Serial ATA2, 300 MB/s max |
| Integrated Graphics | Graphics Media Accelerator 3000 (H‑9656GN only) |
| Audio | 8‑channel audio output |
| Network | 100/1000 M Ethernet with Wake‑on‑LAN |
Refer to section 2.2.2 "安装CPU" for step‑by‑step CPU installation instructions.
