This is a PDF file. It contains the pin layout of a motherboard.

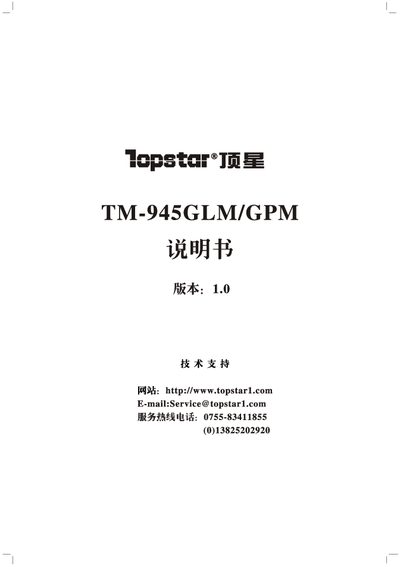

This manual covers the features of the Topstar TM-945GLM/GPM motherboard, including its Intel 945GC + ICH7 chipset, support for LGA 775 CPUs, DDR2 memory, and integrated graphics. Detailed hardware installation procedures, driver installation for chipset, graphics, LAN and audio, as well as BIOS settings and upgrade instructions are provided.
Additional sections include a list of connectors and ports, power management options, troubleshooting tips, and contact information for Topstar service centers across China. This manual is written in Chinese.
| Chipset | Intel 945GC + ICH7 |
|---|---|
| CPU Socket | LGA 775 (Prescott, Celeron D, etc.) |
| Front Side Bus | 800/533 MHz (1066/800 MHz for GPM) |
| Maximum Memory Capacity | 26 GB |
| SATA Ports | 2 × SATA II |
| USB Ports | Up to 8 × USB 2.0 |
| PCI Express Slots | PCI Express 16x/4x |
| Integrated Graphics | Intel GMA 950 |
| Onboard LAN | 100 M Ethernet |
| Audio | 6‑channel output |
It supports Intel LGA 775 processors such as Prescott, Celeron D, and other LGA 775 CPUs.
The motherboard provides up to eight USB 2.0 ports.
