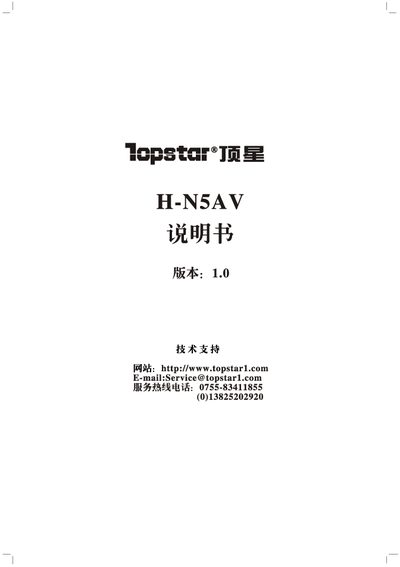

Topstar H-N5AV Motherboard User Manual

This is a motherboard circuit diagram, which contains the motherboard's various interfaces, chips and pin descriptions.

Brand: Topstar
Category: Other Computer Accessories
Document type: User Manual
Language: Chinese
Pages: 72
File format: PDF
File size: 23.7 MB
Published: 21 March, 2012
Updated: 01 October, 2023
Model: N5AV
MD5 checksum: A3A983ECDCAFD3358E82BA53D1398004
PDF: Topstar H-N5AV Motherboard User Manual PDF

About this manual

This manual describes the Topstar H‑N5AV motherboard, which uses the NVIDIA nForce520LE chipset and supports a range of AMD processors. It details the board's features such as DDR2 memory support, multiple PCI‑Express slots, integrated USB 2.0 and AC'97 audio, and various storage interfaces.

The document includes an installation guide, BIOS configuration instructions, driver installation procedures, and a list of recommended tools. It also contains safety warnings, common PC issue troubleshooting, and contact information for service centers across China. This manual is written in Chinese.

What's inside

Motherboard Features
Installation Guide
BIOS Settings and Functions
Driver Installation
Tools Introduction
Safety Warnings
Troubleshooting
Service Center Contacts

Specifications

CPU Socket	Socket 940
Supported Memory Types	DDR2 400/533/667/800
Maximum Memory Capacity	8 GB
USB Controllers	Integrated USB 2.0 (also USB 1.1)
Storage Interfaces	ATA100/133, SATA/SATA‑II
Power Management	ACPI 1.0b, PnP 1.0a, APM 1.2
