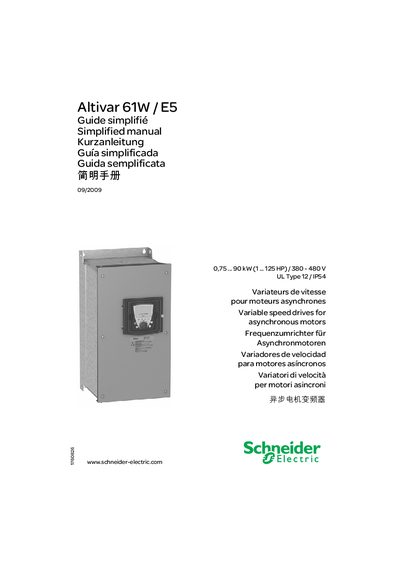

This document provides a simplified manual for the Schneider Electric Altivar 61W / E5 variable speed drives for asynchronous motors, including the features and characteristics of the products.
The guide offers important safety information, warning symbols and handling precautions for the Altivar 61W drive. It stresses that only qualified personnel should install, adjust or repair the equipment and outlines the required protective measures.
It then walks the installer through the preparation, mounting, wiring, configuration and commissioning steps, including language selection, menu navigation, motor parameter setup and auto‑tuning. Additional sections cover wiring diagrams, electromagnetic compatibility, and troubleshooting of faults. This manual is written in French.
| Power rating | 0.75 – 90 kW (1 – 125 HP) |
|---|---|
| UL Type | 12 / P54 |
It indicates a dangerous situation that can cause death, serious injury, or property damage.
Disconnect the power, place a "DO NOT RE‑ENERGIZE" tag, lock the breaker open, wait 15 minutes for the DC‑bus capacitors to discharge, and verify the bus voltage is below 45 V.
If idle for a long period, power the drive on at least every two years for a minimum of five hours to restore capacitor performance.
