C.N70HD Ver1.5 is a AMD Socket AM2 interface of Colorful motherboard, using a single chip NVIDIA MCP68 PVNT chipset design, support AMD Athlon™ 64 FX/Athlon™ 64 X2/Athlon™ 64/Sempron™ CPU, support DDR2 533/DDR2 667/DDR2 800 standard memory.

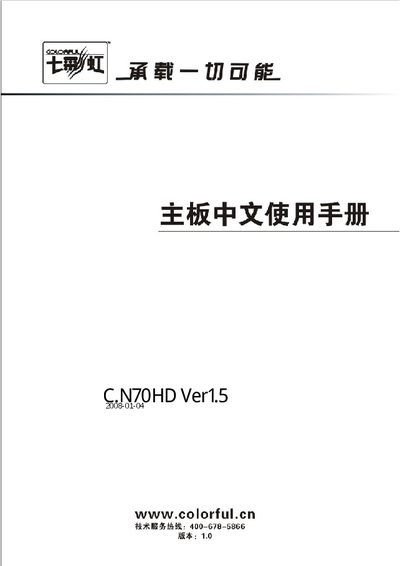

This manual introduces the Colorful C.N70HD Ver1.5 motherboard, its features, and the components included in the box. It guides users through hardware installation, driver setup, and BIOS configuration.
Detailed sections cover integrated peripherals, power‑management settings, PCI/PCI‑Express configuration, PC health monitoring, and troubleshooting, with a full parts list and connector reference. This manual is written in Chinese.
| Form factor | mATX |
|---|---|
| Chipset | NVIDIA MCP68 PVNT |
| CPU socket | AMD Socket AM2 |
| Supported CPUs | AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron |
| Memory slots | 4 x 240‑pin DDR2 DIMM |
| Memory type | DDR2 400/533/667/800, dual‑channel |
| PCI Express slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1 |
| SATA ports | 4 x SATA2, 1 x eSATA (rear) |
| VGA/DVI port | 1 x VGA/DVI |
| Network | Integrated 10/100/1000 Mbps Ethernet |
The board supports AMD Socket AM2 CPUs, including Athlon 64 FX, Athlon 64 X2, Athlon 64, and Sempron processors.
Yes, it supports dual‑channel DDR2 memory at 400, 533, 667, and 800 MHz.
