The C.NC65-M2 Ver1.4 motherboard is a motherboard that supports AMD Socket AM2. It adopts the MATX architecture and supports AMD Athlon 64 FX/Athlon 64/Sempron CPU, DDR2 memory, and HyperTransport technology. It provides various expansion interfaces and functions.

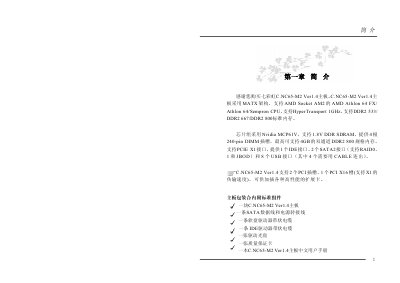

This manual provides an overview of the Colorful C.NC65-M2 Ver1.4 motherboard, its MATX layout, supported AMD Socket AM2 CPUs, Nvidia MCP61V chipset and the various interfaces such as PCI‑E, SATA2, USB2.0 and audio ports. It also lists the components included in the package and the basic hardware architecture.
Detailed sections guide users through hardware installation, jumper settings, pin definitions, power connections, BIOS configuration, and common error messages. Appendices contain audio configuration, BIOS update procedures and a glossary of technical abbreviations. This manual is written in Chinese.
| CPU Socket | AMD Socket AM2 |
|---|---|
| Chipset | Nvidia MCP61V |
| Memory Slots | 4 × 240‑pin DDR2 DIMM (1.8 V) |
| Maximum Memory | 4 GB DDR2 |
| Supported Memory Types | DDR2‑533 / DDR2‑667 / DDR2‑800 |
| PCI Slots | 2 × PCI 2.2 compatible |
| SATA Interfaces | 2 × SATA2 (RAID 0/1/JBOD) |
| IDE Interfaces | 2 × IDE |
| USB Ports | 8 × USB2.0 (4 internal, 4 via cable) |
| Audio Codec | Realtek ALC880 7.1‑channel |
| LAN | Realtek RTL8100C 10/100 Mbps |
Move the CLR_CMOS jumper from pins 1‑2 to pins 2‑3, wait a few seconds, then move it back to pins 1‑2.
