C.N61T Ver1.6 motherboard uses NVIDIA MCP61P chipset, supports AMD Socket AM2 AMD Athlon™ 64 FX/Athlon™ 64 X2/Athlon™ 64/Sempron™ CPU, supports HyperTransport 2000MHz, supports DDR2 533/DDR2 667/DDR2 800 memory specifications. This motherboard integrates GeForce6100 graphics core, supports DirectX 9.0c and Shader Model 3.0 effects.

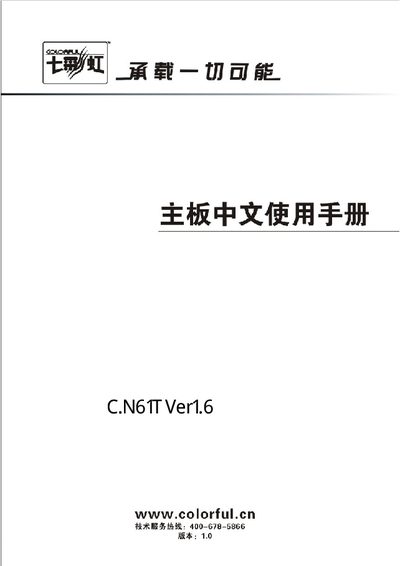

This manual introduces the C.N6TT Ver1.6 motherboard, its features, and the items included in the retail box. It guides users through hardware installation, driver setup, BIOS configuration, and safety precautions.
Key sections cover hardware layout, connector pin‑outs, BIOS options, and technical support contacts, helping both beginners and experienced builders to assemble and configure the board safely. This manual is written in Chinese.
| Chipset | NVIDIA MCP6TP |
|---|---|
| CPU Socket | AMD Socket AM2 |
| Supported Memory | DDR2 533/667/800 (dual‑channel) |
| DIMM Slots | 2 × 240‑pin 18V DDR2 slots |
| IDE Interface | 1 × DE (IDE) connector |
| SATA Ports | 2 × SATA2 high‑speed connectors |
| Network | Integrated 100 Mbps Ethernet |
The box contains the C.N6TT Ver1.6 motherboard, a SATA data cable, a SATA power adapter, an IDE ribbon cable, a driver CD, a warranty card, and the Chinese user manual.
