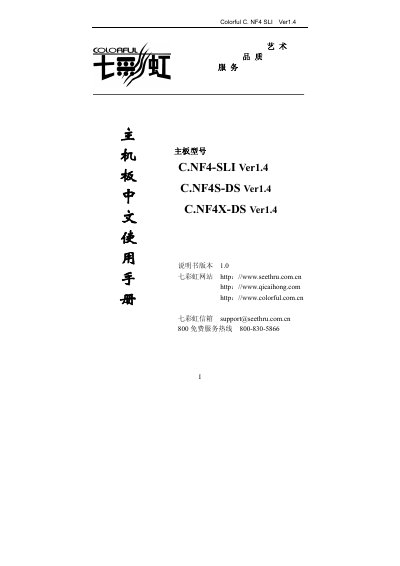

This document introduces the specifications, features, and characteristics of the Colorful C. NF4 SLI Ver1.4 motherboard, including the processor, chipset, memory, expansion slots, data lines, security performance, BIOS, super I/O functions, and power management.
This manual covers the Colorful C.NF4 series ATX motherboards, detailing processor support, chipset features, memory configuration, expansion slots, storage options, and audio capabilities. It includes step‑by‑step hardware installation instructions, BIOS configuration guidance, and driver installation procedures.
Additional sections describe safety precautions, power‑management settings, RAID configuration, and common error messages. The document also provides a glossary of motherboard abbreviations and contact information for technical support. This manual is written in Chinese.
| Processor socket | AMD Socket 939 |
|---|---|
| Supported CPUs | AMD Athlon 64, AMD Athlon 64 FX, AMD Athlon 64 X2 Dual‑Core |
| Memory slots | 4 × 184‑pin DDR2.5V, dual‑channel DDR333/DDR400, max 4 GB |
| PCI‑Express slots | 1 × PCI‑E x16 (4 GB/s), 2 × PCI‑E x1 (250 MB/s each) |
| SATA ports | 4 ports, RAID 0/1/0+1/JBOD supported |
| BIOS | Award BIOS, 4 Mb Flash EEPROM |
The motherboard supports RAID 0, RAID 1, RAID 0+1, and JBOD on its four SATA ports.
It provides one PCI‑E x16 slot with 4 GB/s bandwidth and two PCI‑E x1 slots with 250 MB/s bandwidth each.
The C.NF4‑SLI board supports AMD Socket 939 CPUs, including AMD Athlon 64, Athlon 64 FX, and Athlon 64 X2 Dual‑Core processors.
