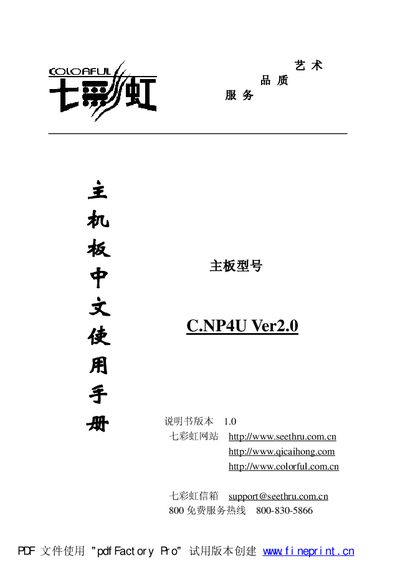

This document is a manual for the Colorful motherboard model C.NP4U Ver2.0, which introduces the specifications, processor, chipset, memory, audio standard, PCI-Express, network card, BIOS, super I/O function, expansion slots, and motherboard structure of the motherboard.
This manual describes the features and specifications of the Colorful C.NP4U Ver2.0 ATX motherboard, including supported CPUs, memory, storage, and expansion options. It guides users through installation, BIOS settings, driver installation, and system troubleshooting.
Key sections cover hardware specifications, connector descriptions, jumper settings, power management, BIOS update procedures, and technical support contact information. This manual is written in Chinese.
| Supported Processors | Intel Pentium 4, Celeron D, Pentium 4 Extreme, Pentium D |
|---|---|
| Chipset | nVidia nForce4 Ultra Intel Edition + MCP51 |
| Memory Slots | 2 x 240‑pin DDR2 DIMM, up to 2 GB, DDR2‑400/533/667 |
| SATA Ports | 4 x SATA2 (RAID0/1/0+1/JBOD) |
| Audio | Integrated AC97 ALC850, 7.1‑channel output |
| PCI‑Express | 1 x PCI‑E x16 (4 GB/s), 2 x PCI‑E x1 (250 MB/s) |
| USB Ports | 8 x USB2.0 (up to 480 Mb/s) |
After powering on, press the DEL key to enter the CMOS setup, load default values or adjust settings, and ensure the BIOS write‑protect jumper is set to writable before flashing.
The motherboard supports Intel LGA775 sockets for Pentium 4, Celeron D, Pentium 4 Extreme, and Pentium D processors.
It provides four SATA2 ports that support RAID0, RAID1, RAID0+1, and JBOD configurations.
It uses DDR2‑400/533/667 SDRAM in two 240‑pin slots, with a maximum total capacity of 2 GB.
