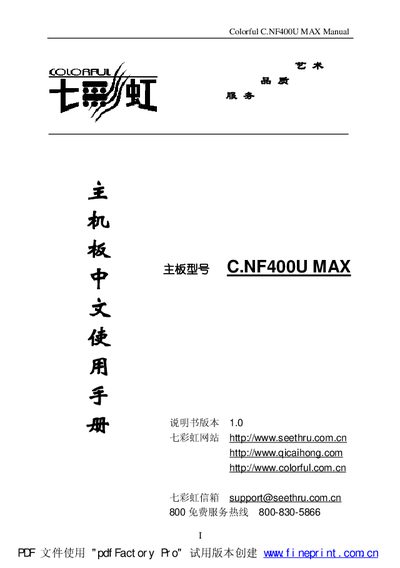

C.NF400U MAX motherboard user manual, introduces the motherboard specifications, hardware settings, hardware installation steps, driver installation and BIOS settings
The C.NF400U MAX is a Colorful motherboard that supports AMD Socket 462 Pin Athlon XP and Duron processors with front‑side bus speeds of 200‑400 MHz and DDR200‑400 memory. It uses an Nvidia nForce2 SPP + MCP‑T AGPset chipset, offers three 184‑pin DIMM slots for up to 3 GB DDR400 RAM, and includes AGP 3.0/8X, PCI, SATA‑150, USB 2.0, and IEEE‑1394 interfaces.
This manual covers the motherboard’s specifications, BIOS and CMOS settings, hardware installation steps, driver installation, and troubleshooting guidance. It also provides contact information for technical support and a glossary of terms used throughout the document. This manual is written in Chinese.
| Model | C.NF400U MAX |
|---|---|
| CPU Socket | AMD Socket 462 Pin |
| Supported Processors | AMD Athlon XP and Duron (FSB 200/266/333/400 MHz) |
| Memory Slots | 3 × 184‑pin DIMM, up to 3 GB DDR400 |
| Chipset | Nvidia nForce2 SPP + MCP‑T AGPset |
| AGP Interface | AGP 3.0 and AGP 8X (0.8 V/1.5 V) |
| Audio Codec | AC'97 six‑channel codec |
It supports AMD Athlon XP and Duron processors using Socket 462 with front‑side bus speeds of 200, 266, 333, or 400 MHz.
The board has three 184‑pin DIMM slots and can accommodate up to 3 GB of DDR400 memory, supporting DDR200‑400 standards.
Technical support is available via the Colorful website, email [email protected], and a nationwide hotline (800‑830‑5866).
