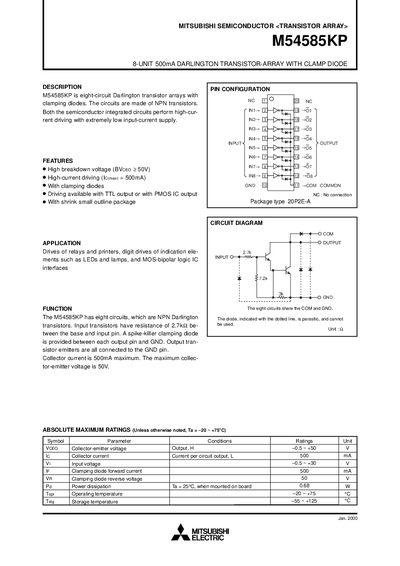

M54585KP is an 8-unit Darlington transistor array with clamping diodes. It is made of NPN transistors and performs high-current driving with extremely low input-current supply. The M54585KP has high breakdown voltage (BVCEO ≥ 50V), high-current driving (IC(max) = 500mA), with clamping diodes, driving available with TTL output or with PMOS IC output, and shrink small outline package. It can be used for driving relays and printers, digit drives of indication elements such as LEDs and lamps, and MOS-bipolar logic IC interfaces.
The M54585KP is an eight‑circuit Darlington transistor array with integrated clamping diodes. All circuits share a common ground and provide high‑current driving capability for loads such as relays, LEDs, and printer interfaces.
The device is supplied in a 20‑pin small‑outline package (20P2E‑A) and is rated for a maximum collector current of 500 mA per circuit, a collector‑emitter breakdown voltage of 50 V, and operates over a temperature range of –20 °C to +75 °C.
| Number of units | 8 |
|---|---|
| Package type | 20P2E‑A |
| Operating temperature range | –20 °C to +75 °C |
| Input voltage range | –0.5 V to +30 V |
| Clamping diode forward current | 500 mA |
| Clamping diode reverse voltage | 50 V |
The device contains eight Darlington transistor units.
It is supplied in a 20‑pin small‑outline package type 20P2E‑A.
