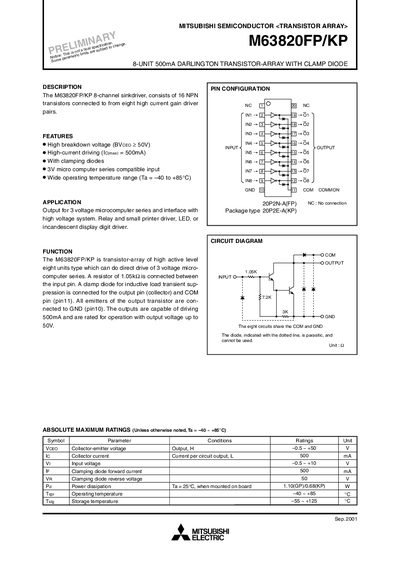

The M63820FP/KP is an 8‑channel sink‑driver transistor array designed for 3‑V micro‑computer series and high‑voltage interfacing. Each channel consists of a high‑gain NPN pair with an integrated clamping diode for inductive‑load protection, allowing up to 500 mA per output and a collector‑emitter voltage of 50 V.
Key specifications include a –40 °C to +85 °C operating temperature range, absolute maximum collector current of 500 mA per channel, and a package type of 20P2N‑A(FP) (FP version) or 20P2E‑A(KP) (KP version). The device features a 1.05 kΩ input resistor, turn‑on time of about 150 ns and turn‑off time of about 18 ns.
| Collector current per channel (Ic) | 500 mA |
|---|---|
| Input voltage range (Vi) | -0.5 V to +10 V |
| Clamping diode forward current (IF) | 500 mA |
| Clamping diode reverse voltage (VR) | 50 V |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -55 °C to +125 °C |
| Package type (KP version) | 20P2E‑A(KP) |
| Turn‑on time | ≈150 ns |
| Turn‑off time | ≈18 ns |
Each output channel can drive up to 500 mA.
It operates from –40 °C to +85 °C.
