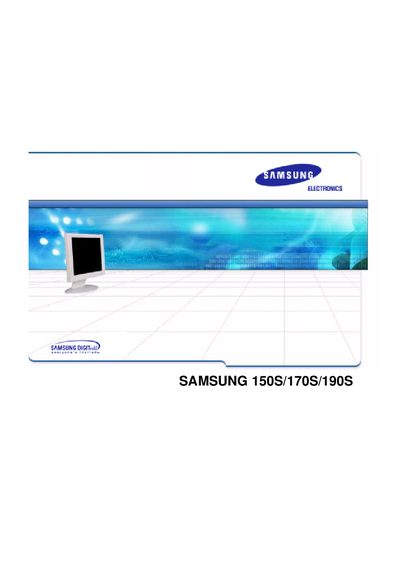

This document is the user's manual for SAMSUNG 150S/170S/190S display, which introduces the safety instructions for using the display, troubleshooting, installation, use, and other content.
This manual covers safety precautions for handling the Samsung 150S/170S/190S LCD monitors, including warnings about electrical shock, proper ventilation, and cleaning methods. It also explains how to install the monitor, connect it to a computer, and set up VESA‑compliant mounting.
Detailed specifications such as panel size, resolution, power consumption, and environmental requirements are listed, along with instructions for using Samsung's Natural Color software and troubleshooting common issues.
| Panel Size | 15.0 inch diagonal |
|---|---|
| Optimum Resolution | 1024 x 768 @ 60 Hz |
| Maximum Power Consumption | 30 W (Maximum) |
| Dimensions (W × D × H) | 368.5 × 173 × 386.2 mm |
| VESA Mounting Interface | 75 mm × 75 mm |
The monitor operates on AC 90 ~ 264 VAC rms, 60/50 Hz ± 3 Hz.
Insert the supplied CD, run D:\color\eng\setup.exe (or the appropriate drive), and follow the on‑screen prompts.
The 150S supports a maximum resolution of 1024 × 768 at 75 Hz.
