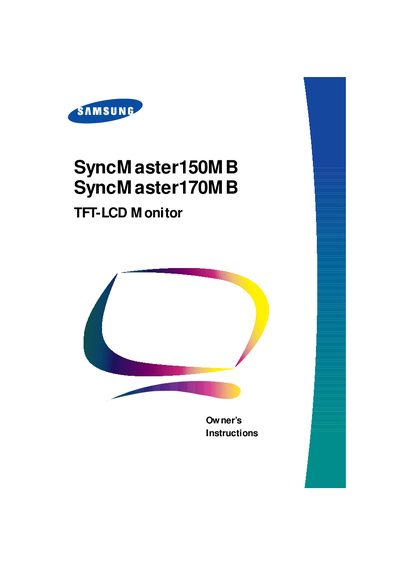

Samsung SyncMaster150MB / SyncMaster170MB TFT-LCD Monitor Owner’s Instructions

Owner's instructions for SyncMaster150MB SyncMaster170MB TFT-LCD monitor. Describes the features and characteristics of the product.

Brand: Samsung
Category: Monitor
Document type: User Manual
Language: English
Pages: 34
File format: PDF
File size: 2 MB
Published: 21 March, 2012
Updated: 29 September, 2023
MD5 checksum: 745A896F22B314EC268ABD916E9E169E
PDF: Samsung SyncMaster150MB / SyncMaster170MB TFT-LCD Monitor Owner’s Instructions PDF

About this manual

This manual covers safety precautions, unpacking, and ergonomic workstation setup for the SyncMaster150MB and SyncMaster170MB TFT‑LCD monitors. It explains how to connect power and video cables, install drivers, and use the built‑in self‑test feature.

The guide also details on‑screen display controls, VESA‑compatible mounting, and maintenance procedures, and includes a specifications section for power requirements, screen size, and mounting standards.

What's inside

Safety Instructions
Unpacking Your Monitor
Setting up Your LCD Monitor
Connecting Your LCD Monitor
Adjusting Your LCD Monitor
Troubleshooting
Specifications
Installing VESA Mounting Devices

Specifications

Screen size	17 inches (SyncMaster 170MB)
Power input	12 V DC
Mounting standard	VESA compatible
Power cord type	Detachable IEC‑320 style

Frequently asked questions

Can the monitor be wall‑mounted?

Yes, it supports VESA‑compliant mounting devices and includes instructions for attaching a wall or arm mount.

Download PDF (2 MB)
