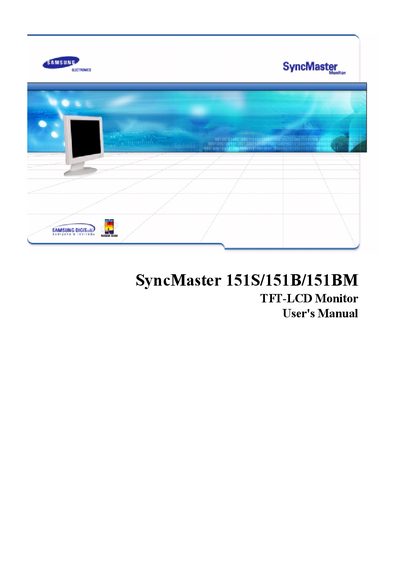

This is a user manual for SyncMaster 151S/151B/151BM TFT-LCD monitors, which provides information on safety instructions, troubleshooting, installation, cleaning, specifications, etc.
This manual covers safety precautions, installation procedures, operation tips, and troubleshooting for the Samsung SyncMaster 151S/151B/151BM 15‑inch TFT‑LCD monitor. It also explains how to connect the monitor, adjust settings, and maintain the device.
Detailed product specifications, power requirements, cleaning instructions, and software installation (Natural Color) are included, along with regulatory and medical‑device information where applicable. This manual is written in Chinese.
| Model Name | SyncMaster 151S |
|---|---|
| Panel Size | 15.0 inch diagonal |
| Optimum Resolution | 1024 x 768 @60Hz |
| Maximum Resolution | 1024 x 768 @75Hz |
| Power Supply | AC 90 ~ 264 VAC rms, 60/50 Hz ±3Hz |
| Power Consumption | 30W (Maximum) |
| Dimensions (WxDxH) | 391.4 x 173 x 383.6 mm |
| VESA Mounting Interface | 75mm x 75mm |
| Operating Temperature | 50°F ~ 104°F (10°C ~ 40°C) |
Use a recommended detergent with a slightly moistened soft cloth; do not spray detergent directly on the screen.
It requires AC 90 ~ 264 VAC rms, 60/50 Hz ±3 Hz.
The monitor supports a maximum resolution of 1024 × 768 at 75 Hz.
Insert the included CD, run D:\color\eng\setup.exe (or the appropriate drive) and follow the on‑screen prompts.
