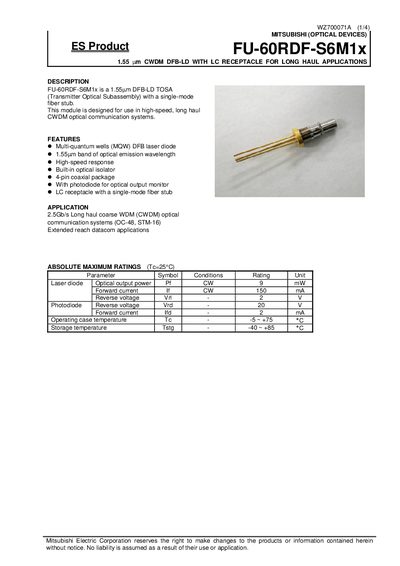

The FU-60RDF-S6M1x is a 1.55µm DFB-LD TOSA (Transmitter Optical Subassembly) with a single-mode fiber stub. This module is designed for use in high-speed, long haul CWDM optical communication systems.
The FU-60RDF-S6M1x is a 1.55 µm DFB‑LD transmitter optical sub‑assembly (TOSA) designed for high‑speed, long‑haul CWDM communication systems. It features a multi‑quantum‑well laser diode, built‑in optical isolator, LC receptacle with single‑mode fiber stub, and an integrated photodiode for output monitoring.
The document provides detailed electrical and optical characteristics, absolute maximum ratings, receptacle specifications, and extensive safety and handling instructions, including eye‑safety warnings, ESD precautions, storage conditions, and disposal requirements.
| Maximum optical output power | 9 mW |
|---|---|
| Maximum forward current | 150 mA |
| Reverse voltage (laser diode) | 2 V |
| Photodiode reverse voltage | 20 V |
| Operating temperature range | -5 °C to +75 °C |
| Storage temperature range | -40 °C to +85 °C |
| Wavelength range (example) | 1510 nm – 1517 nm |
The device can deliver up to 9 mW of optical output power.
Avoid looking directly at the laser beam, handle the GaAs material with care, dispose of the product as special industrial waste, and follow ESD protection measures such as grounding equipment and using antistatic clothing.
