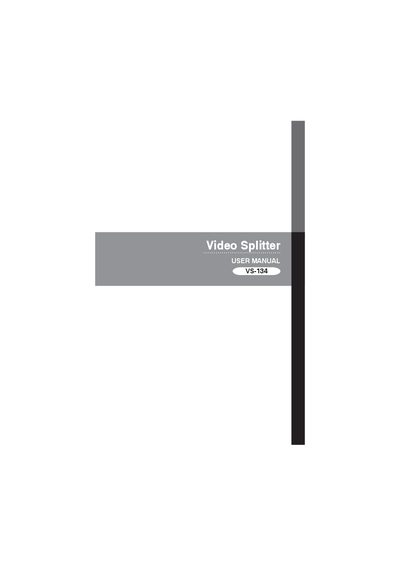

This document is the user manual for VS-134 Video Splitter, which provides information about the features and usage of the video splitter. The equipment complies with FCC regulations and is suitable for commercial environments.
The VS-134 Video Splitter duplicates an analog video signal to four outputs and can extend transmission up to 65 m, making it suitable for classrooms, broadcast, and business displays. The manual covers package contents, hardware requirements, and safety information.
Installation steps describe connecting the VGA input, attaching monitors to the four output ports, and powering the unit with the supplied 9 V AC adapter. Cascading multiple VS‑134 units is also explained, along with specifications such as bandwidth, resolution, and power consumption.
| Input connector | 1 x HDB-15 Male |
|---|---|
| Output connectors | 4 x HDB-15 Female |
| VGA bandwidth | 350 MHz |
| Maximum resolution | 1920 x 1440 @80 Hz |
| Maximum cable distance | 65 m (210 ft.) |
| Power consumption | AC 9 V, 200 mA (max.) |
| Weight | 1.15 kg |
| Dimensions (L × W × H) | 22.40 × 15.20 × 5.20 cm |
The VS-134 duplicates the video signal to four output ports, allowing up to four monitors to be connected at once.
The splitter can transmit the video signal up to 65 m (210 ft.) without additional equipment.
The unit uses a supplied AC 9 V power adapter with a maximum draw of 200 mA.
