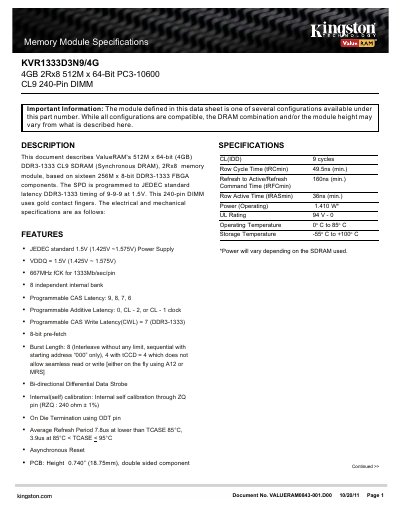

ValueRAM KVR1333D3N9/4G DDR3-1333 CL9 Memory Module Datasheet
The ValueRAM KVR1333D3N9/4G is a 4 GB (512M × 64‑bit) DDR3‑1333 CL9 2Rx8 DIMM designed for high‑performance desktop and server applications. It complies with JEDEC standard 1.5 V operation and features on‑die termination, internal self‑calibration, and bi‑directional differential data strobe.
Key specifications include a 667 MHz memory clock, programmable latency settings, a 0.740 in (18.75 mm) module height, and operating temperature range from 0 °C to 85 °C. The datasheet provides detailed electrical parameters, timing values, and mechanical dimensions for system designers.
Kingston KVR1333D3N9 specifications
| Capacity | 4 GB (2Rx8, 512M × 64‑bit) |
|---|---|
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Memory Clock | 667 MHz fCK (1333 Mb/s per pin) |
| CAS Latency | 9 (programmable) |
| Power Consumption | 1.410 W (operating) |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 0.740 in (18.75 mm) |
Source: ValueRAM KVR1333D3N9/4G DDR3-1333 CL9 Memory Module Datasheet
All Kingston KVR1333D3N9 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage of the KVR1333D3N9/4G module?
The module operates at a JEDEC standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: ValueRAM KVR1333D3N9/4G DDR3-1333 CL9 Memory Module Datasheet
What is the CAS latency for this memory module?
The programmable CAS latency is set to 9 cycles.
From: ValueRAM KVR1333D3N9/4G DDR3-1333 CL9 Memory Module Datasheet
What is the operating voltage of the KVR1333D3N9/4GKC module?
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: ValueRAM KVR1333D3N9/4GKC DDR3-1333 CL9 4GB 2Rx8 Memory Module Datasheet
What is the module height?
The PCB height is 0.740 in (18.75 mm).
From: ValueRAM KVR1333D3N9/4GKC DDR3-1333 CL9 4GB 2Rx8 Memory Module Datasheet
What is the supply voltage of the KVR1333D3N9/1G module?
It operates at a JEDEC‑standard 1.5 V (range 1.425 V ~ 1.575 V).
From: ValueRAM KVR1333D3N9/1G 1GB DDR3-1333 CL9 Memory Module Datasheet
What are the timing parameters for this memory module?
The module supports programmable CAS latency values of 9, 8, 7, 6, with CL9 as the default.
From: ValueRAM KVR1333D3N9/1G 1GB DDR3-1333 CL9 Memory Module Datasheet
