KHX5300S2LLK2/2G is a 2GB DDR2 SODIMM memory module from Kingston, consisting of two 1GB 128M x 64-bit SDRAMs.
Kingston's KHX5300S2LLK2/2G kit consists of two 1 GB DDR2 CL4 low‑latency SODIMM modules, each built from eight 128M × 8‑bit DDR2 FBGA components. The kit provides a total capacity of 2 GB and operates at a single 1.8 V power supply.

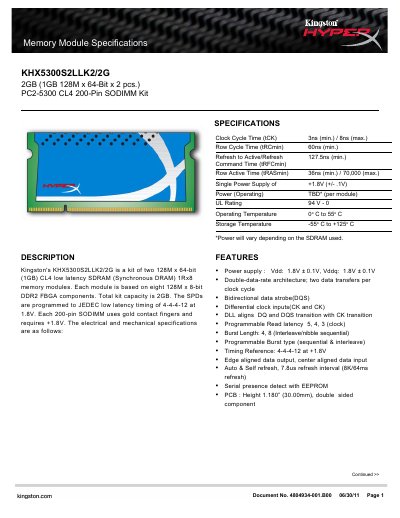

The leaflet lists electrical, mechanical, and timing specifications, including a 3 ns minimum clock cycle, 60 ns row cycle, and JEDEC timing of 4‑4‑4‑12. It also notes operating temperature limits (0 °C – 55 °C) and storage limits (‑55 °C – +125 °C), as well as physical dimensions of the PCB.
| Total Capacity | 2 GB |
|---|---|
| Memory Type | PC2‑5300 CL4 200‑Pin SODIMM |
| Clock Cycle Time (tCK) | 3 ns min / 8 ns max |
| Row Cycle Time (tRCmin) | 60 ns min |
| Refresh to Active/Refresh | 127.5 ns min |
| Row Active Time (tRASmin) | 36 ns min / 70 000 ns max |
| Power Supply | +1.8 V ±0.1 V |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -55 °C to +125 °C |
| PCB Height | 1.180 in (30.00 mm) |
| Timing Reference | 4‑4‑4‑12 at +1.8 V |
The kit provides a total capacity of 2 GB, made up of two 1 GB modules.
It operates from a single +1.8 V power supply with a tolerance of ±0.1 V.
The timing reference is 4‑4‑4‑12 at a supply voltage of +1.8 V.
Operating temperature is from 0 °C up to 55 °C.
