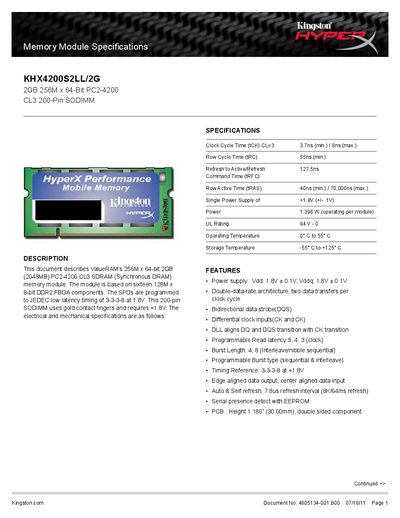

This document describes the features and characteristics of ValueRAM's 256M x 64-bit 2GB (2048MB) PC2-4200 CL3 SDRAM memory module. The module is based on sixteen 128M x 8-bit DDR2 FBGA components. The SPDs are programmed to JEDEC low latency timing of 3-3-3-8 at 1.8V. This 200-pin SODIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:...
The KHX4200S2LL/2G is a 2 GB (2048 MB) DDR2 PC2‑4200 SODIMM memory module built from sixteen 128M × 8‑bit DDR2 FBGA components. It operates at a single +1.8 V supply and complies with JEDEC low‑latency timing (3‑3‑3‑8).
The document provides detailed electrical, mechanical, and environmental specifications, including timing parameters, power consumption, temperature ranges, and physical dimensions. For additional details, visit Kingston’s website.
| Capacity | 2 GB (2048 MB) |
|---|---|
| Form factor | 200‑Pin SODIMM |
| Voltage | +1.8 V (±0.1 V) |
| Clock Cycle Time (tCK) | 3.7 ns min / 8 ns max |
| Row Cycle Time (tRC) | 55 ns min |
| Power consumption | 1.396 W (operating per module) |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | -55 °C to +125 °C |
The module provides 2 GB (2048 MB) of memory.
It requires a single +1.8 V supply (±0.1 V).
The module operates from 0 °C up to 55 °C.
More information is available at www.kingston.com.
