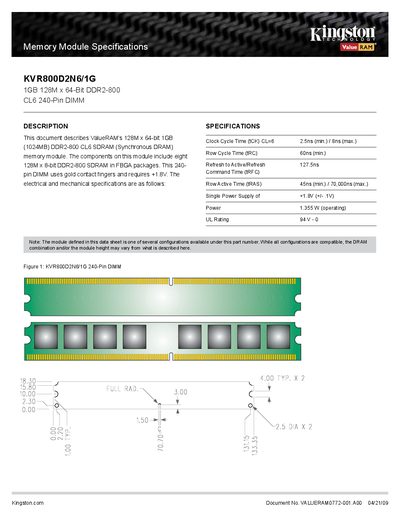

This document describes the features and characteristics of ValueRAM's 128M x 64-bit 1GB (1024MB) DDR2-800 CL6 SDRAM (Synchronous DRAM) memory module. The components on this module include eight 128M x 8-bit DDR2-800 SDRAM in FBGA packages. This 240-pin DIMM uses gold contact fingers and requires +1.8V.
The KVR800D2N6/1G is a 1 GB DDR2‑800 memory module (128M × 64‑bit) with a CL6 timing and a 240‑pin DIMM form factor. It uses eight 128M × 8‑bit DDR2‑800 SDRAM chips in FBGA packages and features gold‑plated contact fingers.
Electrical and mechanical specifications include a single +1.8 V power supply, 1.355 W operating power, and UL rating 94V‑0. Various configurations exist under the same part number, differing in DRAM composition or module height.
| Capacity | 1 GB (128M × 64‑bit) |
|---|---|
| CAS Latency (CL) | CL6 |
| Row Cycle Time (tRC) | 60 ns min |
| Row Active Time (tRAS) | 45 ns min / 70,000 ns max |
| Refresh to Active/Refresh (tRFC) | 127.5 ns |
| Operating Voltage | +1.8 V |
| Power Consumption | 1.355 W (operating) |
| UL Rating | 94V‑0 |
It provides 1 GB of memory (128M × 64‑bit).
The module operates from a single +1.8 V power supply.
It consumes 1.355 W when operating.
